Incorporating Rotor Inserts into Your SRD's Manufacturing Process.

---

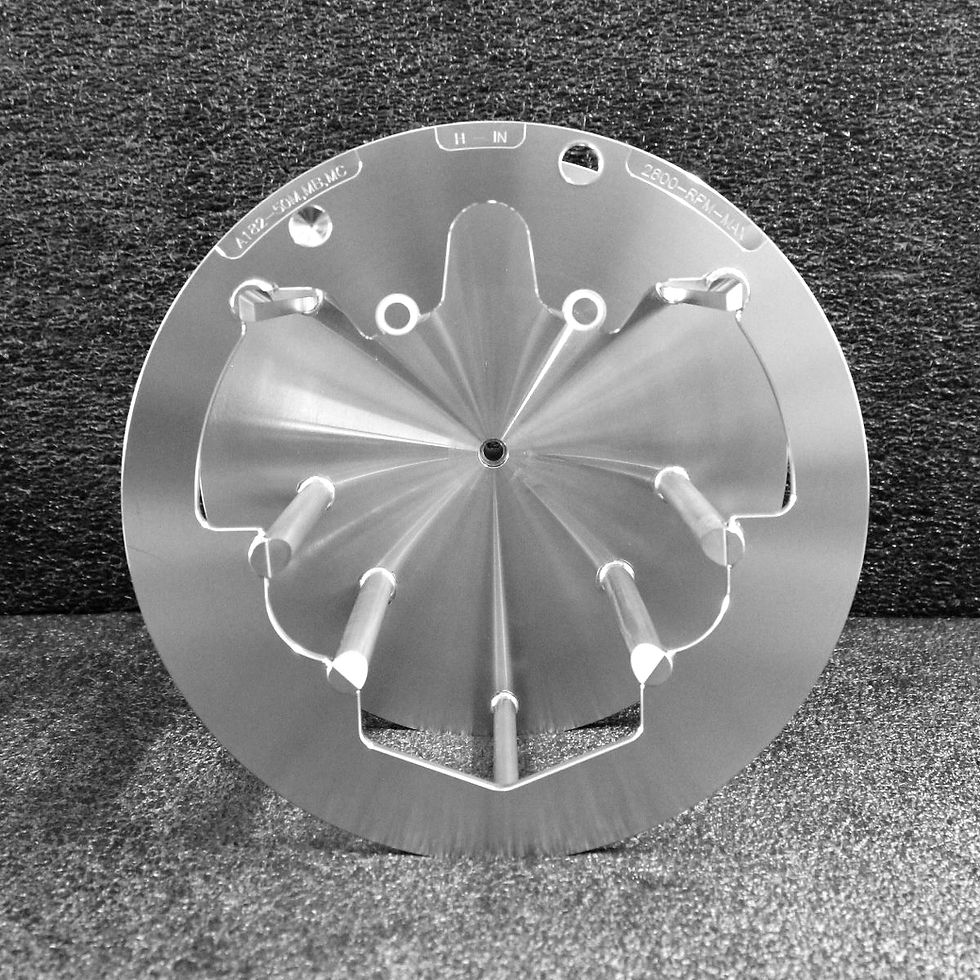

Background – The role of a Spin Rinse Dryer is to clean wafers. Rotors, the apparatus used to hold wafer carriers (cassettes), are designed for the specific carrier. Typically, when production calls for a new wafer size or configuration, a new rotor is required. This results in an increasing rotor inventory to support the various carriers and the workforce tasked with removing and reinserting the rotor(s) during each changeover.

---

Tired of swapping out rotors each time your wafer requirements change?

This Insight is for you.

Incorporating specialized Rotor Inserts into your Spin Rinse Dryer (SRD) is a strategic move that shifts your equipment from a systemic bottleneck to a versatile processing hub. Offering flexibility with different wafer sizes increases SRD utilization and limits down time caused by changing rotors when wafer sizes vary.

(All three apparatuses fit into the same rotor, yet accommodate varying wafers sizes.)

At M Tek, we design, manufacture and balance Inserts for a specific cassette and rotor combination. Precise and advanced design is critical to the proper operation of the SRD for optimized contamination control and process consistency of the wafers.

Let's look at the Benefits of integrating high-precision Rotor Inserts into your manufacturing workflow:

1. Maximum Equipment Utilization

Without inserts, a dedicated SRD is often required for each wafer size (e.g., 100mm, 150mm, 200mm). This leads to "orphaned" equipment when production volume shifts.

• Universal Compatibility: Inserts allow a single large-diameter rotor to accommodate various smaller cassette sizes (see sample above).

• Footprint Optimization: Save valuable cleanroom floor space by consolidating multiple processes into fewer, more flexible stations.

2. Reduction in Downtime

No loss in time when changing an insert vs. an entire rotor.

• Tool-less Changeovers: Our high-quality inserts are designed for rapid installation and removal.

• Zero Re-balancing: Since each insert is pre-balanced for a specific cassette/rotor combination, you eliminate the need for technical recalibration every time you switch wafer sizes.

3. Enhanced Contamination Control

Precise design ensures that the Insert holds the cassette with minimal contact points and maximum stability.

• Vibration Mitigation: Because the Inserts are advanced-engineered and balanced to a specific rotor, they minimize harmonic vibration during high-RPM drying cycles. This prevents particle shedding and "chatter" that can damage fragile wafers.

• Optimized Fluid Dynamics: M Tek Inserts are designed to maintain the airflow and DI water spray patterns intended for optimal performance.

Critical Considerations for Implementation

To realize these benefits, the inserts must meet rigorous engineering standards:

Feature	Impact on Process
Material Integrity	Must be made of high-purity, chemical-resistant polymers (like Natural Poly or PVDF) to prevent ionic contamination.
Dynamic Balance	Must be balanced to a specific rotor to protect the SRD motor from premature wear.
Cassette Fit	A "snug-but-safe" fit is required to ensure the center of gravity remains constant during high RPM spins.

Need additional details? Check out our Insert page: https://www.mtekcorporation.com/cassettes-inserts

---

Insight Tip: Always ensure your Inserts are tracked (i.e. record rotor/cassette combinations). Since Inserts are balanced for specific rotor geometries, mixing and matching unapproved Inserts can lead to catastrophic hardware failure or significant yield loss due to vibration.
